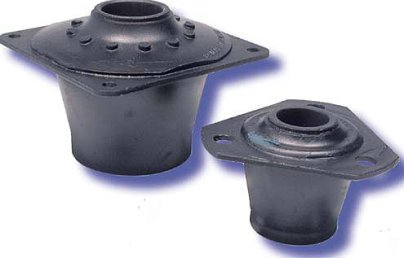

Recessed Flange

Isolators designed for high load capacity combined with relatively large
static deflections in an axial direction. Their high loading for a given
size is obtained by utilising the rubber to the best advantage in both
compression and shear.



Recessed Flange

Name Length (mm) Width (mm) Height (mm) Diameter (mm) Hole Diameter (mm) E2 - Hole Diameter (mm) Durometer - IRH Weight (kg) Plate Thickness (mm) Max Load - Compression (kg) Max Deflection - Compression (mm)

Recessed Flange M137061

106 91 66 84 16.75 10.2 60 1.18 4 500 6.0

Recessed Flange M137063

106 91 66 84 16.75 10.2 60 1.18 4 500 6.0

Recessed Flange M137062

106 91 66 84 16.75 10.2 70 1.18 4 960 6.0

Recessed Flange M137082

80.4 74.8 20.5 13.5 60 1.21 4.9 690 6

Recessed Flange M137083

80.4 74.8 20.5 13.5 70 1.21 4.9 1080 6

Recessed Flange M1714645

121 121 121.4 95.3 25.4 10 45 1.0 4.7 900 6.5

Recessed Flange M1714660

121 121 121.4 95.3 25.4 10 60 1.0 4.7 1700 6.0

Recessed Flange M1714670

121 121 121.4 95.3 25.4 10 70 1.0 4.7 1900 4.5

Recessed Flange M80155045

172 150 100 142 25 11 45 4.5 12.5 700 12.8

Recessed Flange M80155050

172 150 100 142 25 11 50 4.5 12.5 750 12.8

Recessed Flange M80155060

172 150 100 142 25 11 60 4.5 12.5 1250 11

Recessed Flange M80155070

172 150 100 142 25 11 70 4.5 12.5 1250 7.5

Recessed Flange M1716845

159 159 120 120.5 25.4 10 45 2.8 4 830 12.8

Recessed Flange M1716860

159 159 120 120.5 25.4 10 60 2.8 4 1600 12.2

Recessed Flange M8040935

89 54 30 48 12 9 35 0.1 2 23 3.2

Recessed Flange M8040945

89 54 30 48 12 9 45 0.1 2 34 3.2

Recessed Flange M8040960

89 54 30 48 12 9 60 0.1 2 67 3.2

Recessed Flange M8040970

89 54 30 48 12 9 70 0.1 2 83 2.7

Recessed Flange M70675

64 47.6 16.1 8.4 0.4 2.3 200 2.3

Recessed Flange M70250

73.3 43.5 51 13.5 8.8 50 0.25 90 6

Recessed Flange M70265

73.3 43.5 51 13.5 8.8 65 0.25 180 6

Q-Mount M9030060

80 165 25 4.1 850 20

Q-Mount M9030068

80 165 25 4.1 1230 20

Q-Mount M9030075

80 165 25 4.1 1790 20
